Previously bought things are generally nothing special, and there is no desire to sun, but this host feels really worthy of the sun, the first wave of finished products.
After upgrading from home to 20M fiber and replacing the broken wireless router, the living room in the home was empty. My brother, my sister, even my sister-in-kind child who is just attending the kindergarten, is like this. Everyone who comes back from work or after class is hiding in his room with a mobile phone. In the long run, it is not conducive to family harmony. Take a look at the living room and pull them out of the room.
The first step is to give the living room a desktop with similar performance, including daily entertainment including video and games. So after the National Day began to act, these days finally settled, so take out a sun.
According to the usual first to a configuration list
CPU: I7 6700
Graphics: Dylan RX 470 X-Serial 4G
Motherboard: Biostar B150 GTN
Power Supply:Rhyme rated 650W Ultra Platinum Custom Edition
Memory: Pirate Ship Avenger 8G×2
SSD: SanDisk 120G
Hard Disk: Seagate 1T
Heat dissipation: Xuan Bing 400
Chassis Fan: Biostar VIVID LED FAN
Chassis: First Mimi Cube
In the living room I didn't want to put on such a large tower chassis, but the mini ITX chassis had a lot of restrictions and it took a long time to select the first Mami cube.
The IO interface word is on the top, which is convenient but convenient.
Removable on three sides, it is more convenient to install hardware.
The meter cube has good scalability and can support 303mm graphics cards, so the length of the Dylan RX 470 X-Serial I chose is not enough.
Personally feel that this looks more show, and the price and performance of the 470 and 1060 3G price are similar, who actually does not matter.
The included X-shaped logo light indicates whether the graphics card is working properly.
The auxiliary power supply interface is 8PIN, which can supply 150W, and the peak value of 75W for the PCI E interface is 225W.
This backplane protection is protected to this point.
Complete IO interface, this is nothing to say.
Motherboard did not buy ASUS Gigabyte MSI, buy Biostar B150 GTN, because I need this motherboard on the LED external light control function, with the relevant software, the entire machine can be a day and a color casually.
This board 7 phase power supply, for the 6700 still no problem.
The two 16G memory in the living room can fight for a long time, so two DDR4 slots are enough.
IO interface, audio interface using anti-oxidation processing.
ITX board, so the M.2 interface is designed to be back.
This is the light bar that comes with the motherboard.
There is no way to change the color of the memory, so simply buy a pirate ship that has no lights, so that when the machine becomes color, it will not be unexpected. The two vests add up to 16G.

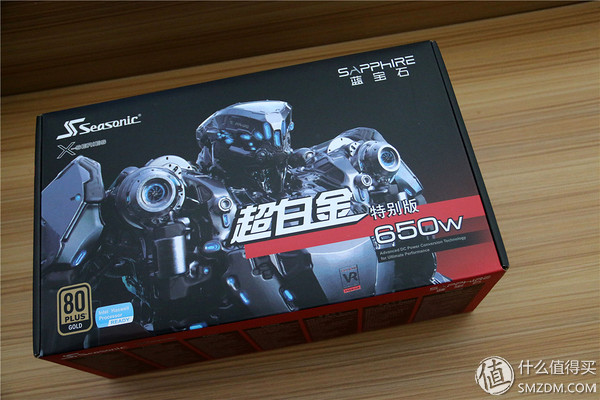

Power is not a single buy, friends plan to buy sapphire 480 ultra-platinum 8G, I just bought this card and this power package with him, 2199, I got 400 out of this power, he took out 1799 video card. 400 blocks to buy a 650W gold power supply is simply worth it.
To give two links, I bought a separate link for the graphics power pack links and power.
Power family portrait.
The power cable comes with a cable tie and is used for wiring.
Full module, gold medal 650W.
The wire family portraits, all of which are flat wires, look good. I always think that full-module power supplies do not use flat wires, which is tantamount to being a rogue.
The entire chassis of the optical system is based on several chassis fan, but to match the external LED lighting control features Biostar motherboard, you need to use Biostar's fan, VIVID LED FAN.
Fans bought in Computer City, it seems that the entire network does not have, for individual links.
Fortunately, this fan does a good job, the light circuit and the fan circuit are separate.
This is the light circuit socket and separation line.
The added blue cushion can absorb shock.
The storage systems are all old, 120 flash SSDs do system disk, 1T mechanical hard disk games.
The last appearance of the Shard 6700 before installation.
Front and rear fans.
Light bar installed below the graphics card, you can follow the video card, a look and I know this card and more show.
Xuanbing 400's own fan also let me replace the VIVIVD LED FAN.
Turn on the default blue light effect.
Change another green, a little red in the green, that is the lamp of the Dylan XS.
Change another red. Red compared with the video card.
Take a look at this LED light control setting software, so many colors I will not show one by one. There is also flickering, and the music flicker pattern is even harder to show.
However, it still requires a few simple tests. The first is the CPU chess test.
Memory speed test.
SSD test.
The graphics card runs subtests.
Roasting machine temperature test.
DIY is fun, personal, and of course, if you want to play with personality, you can't care too much about cost, so don't ask me how much money I spent, because I didn't count.
